Note:
1. This is the DIY version that comes unassembled.
2. Comes without battery, charger, receiver or remote control.
| Item | Specification |
| 140mm Racing Frame Kit | Wheel base: 140mm Frame arm thickness: 3mm Upper plate thickness: 1mm Side plate thickness: 1mm Frame kit material: 3K carbon fiber & CNC 6065 aluminium |
| 1607 2800KV 2-4S Brushless Motor | KV: 2800KV Lipo cell: 2-4S Weight: 17.8g (includes wires) Output shaft length: 14mm Maximum pull: signal 630g (4S 3030 4-blade propeller) Maximum power: 350W Configu-ration: 9N/12P Mounting holes distance: 12*12mm Mounting holes: φM2 Bearing: NSK N52 Strong NdFeB Magnet Recommend propeller: 3 inch |
| 4 IN 1 20A BLHeli_S ESC | Continuous current: 20A Pe ak current: 25A (10S) BEC output: no Input voltage: 2-4S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125 MOS: 3*3 MOS type: vs3610ae 30v64a |
| Customized F4 Flight Controller | Main control chip: STM32F411 Sensor: ICM20602 6-axis Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX Mounting holes distance: 20*20mm Weight: 24g PID circulation rate and refresh rate can up to 32kHz Supports Betaflight/cleanflight/inav firmware |

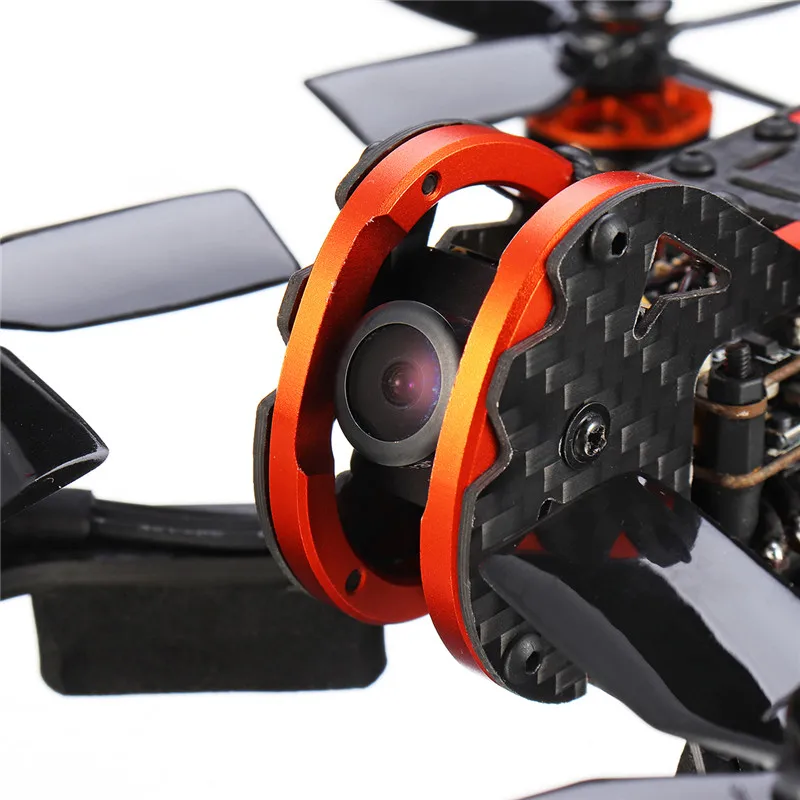

| 700TVL CMOS Camera | Case size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC switchable Resolution ratio(horizontal center): 700TVL Video output: 1.0Vp-p/75Ω Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB White balance: off Exposure mode: electron exposure Electronic shutter: 1/50(1/60) – 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: inter-sync Camera lens: standard 2.1mm Lens operating voltage: DC 5-12V Working current: 70mA (low power consumption) Working temperature: -20℃~-60℃ Humidity: 0%~98% |
| 5.8G 40CH 0mW/25mw/200mw switchable VTX | Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components. |
| 3030 4-blade propeller | Material: PC Mounting hole: 5mm Center thickness: 6mm Quantity: 10 pairs Color: black, red, yellow, green Weight: 5g a pair Delivery color randomly (10 pairs of propellers are the same color) |
| Lipo Battery | Not included Recommend 2-3S 450-650mah |
Package included:
1 x 140mm racing frame kit
2 x 1607 2800KV brushless motor CW
2 x 1607 2800KV brushless motor CCW
1 x 4 IN 1 20A BLHeli_S ESC
1 x Customized F4 flight controller
1 x 700TVL CMOS camera
1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX
2x 3030 4-blade propeller CW
2 x 3030 4-blade propeller CCW
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
| Features: | Remote Control |
|---|---|
| Type: | Helicopter |
| Aerial Photography: | Yes |
| Material: | Metal,PLASTIC |
| Remote Control: | No |
| State of Assembly: | Almost Ready |
| Remote Distance: | as show |
| Dimensions: | 140mm |
| Power Source: | Electric |
| Charging Voltage: | as show |
| Charging Time: | as show |
| Warranty: | no |
| Warning: | no |
| Plugs Type: | as show |
| Motor: | Brushless Motor |
| Controller Battery: | Recommend 2-3S 450-650mah |
| Control Channels: | 12 Channels & Up |
| Flight Time: | as show |
| Controller Mode: | MODE1,MODE2 |
| Age Range: | Grownups,12-15 Years,> 14 years old |
| Model Number: | Eachine Tyro79 |
| Brand Name: | Eachine |
